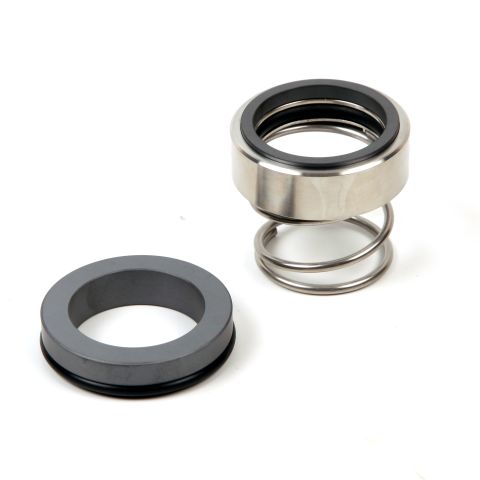

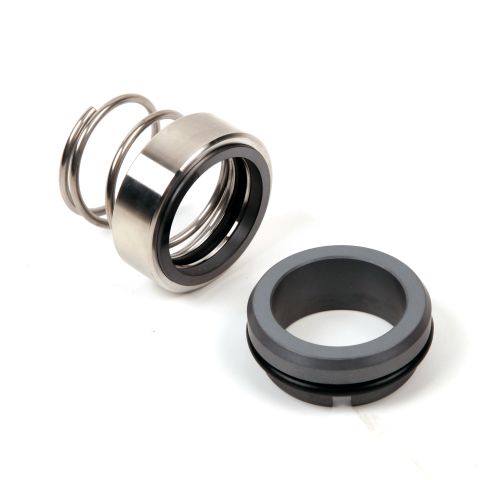

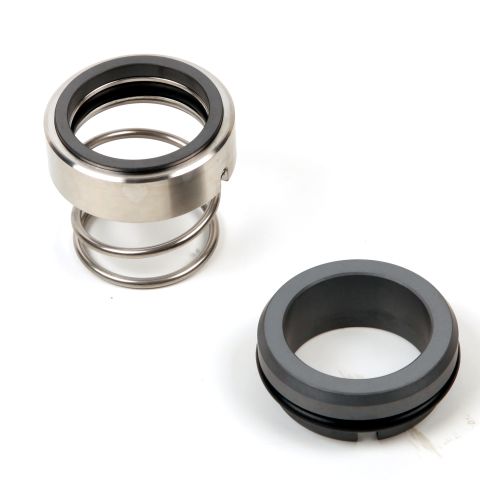

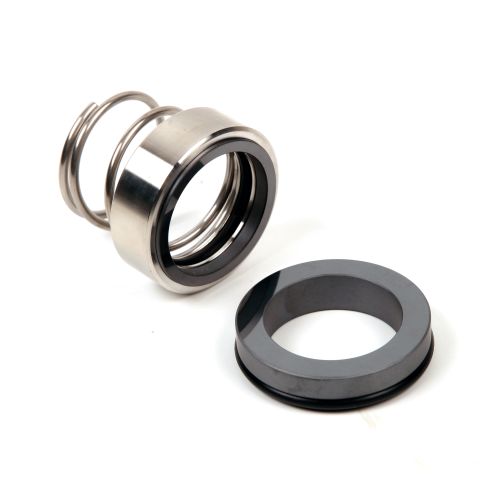

Burgmann M3N/M32/M37
M3N mechanical seals are immensely popular. Extremely rugged and reliable.
M3N covers a wide spectrum of applications- in water pumps, sewage pumps, submersiable pumps, chemical pumps, etc.
Design Features
Comply with DIN 24960
R/H and L/H spring
M32 is Carbon shrink-fitted in rotary face
M37 is SIC or TC rotary face
Materials available
Seal face: Carbon/SIC, SIC/SIC
Elastomer: Nitrile, Viton, Neoprene, EPDM
Standard seat G4, G9, G6 G13
Operating Conditions
Temperature: -30°C to +260°C
Pressure: Up to 10 bar , 145 psi
Speed: Up to 10m/s, 2000fpm
Depending on medium, size and material
| D(mm) | D1 | D2 | L1 (M37) | L2 |
| 10 | 20.0 | 19.2 | 16.9 | 6.6 |
| 12 | 22.0 | 21.6 | 17.4 | 5.6 |
| 14 | 24.0 | 24.6 | 16.5 | 5.6 |
| 16 | 26.0 | 28.0 | 16.5 | 7.5 |
| 18 | 31.0 | 30.0 | 18.0 | 8.0 |
| 20 | 34.0 | 36.0 | 19.0 | 8.0 |
| 22 | 36.0 | 35.0 | 20.5 | 7.5 |
| 24 | 38.0 | 38.0 | 22.0 | 7.5 |
| 25 | 39.0 | 38.0 | 23.5 | 7.5 |
| 28 | 42.0 | 42.0 | 23.5 | 9.0 |
| 30 | 44.0 | 45.0 | 24.5 | 10.5 |
| 32 | 46.0 | 48.0 | 28.0 | 10.5 |
| 35 | 49.0 | 52.0 | 28.0 | 11.0 |
| 38 | 54.0 | 55.0 | 31.0 | 10.3 |
| 40 | 56.0 | 58.0 | 34.0 | 10.8 |
| 45 | 61.0 | 64.0 | 36.5 | 11.6 |
| 48 | 61.0 | 68.4 | 42.0 | 11.6 |
| 50 | 66.0 | 69.3 | 43.0 | 11.6 |
| 55 | 71.0 | 75.4 | 47.0 | 13.3 |
| 58 | 78.0 | 78.4 | 51.0 | 13.3 |
| 60 | 79.0 | 80.4 | 51.0 | 13.3 |
| 65 | 85.0 | 85.4 | 52.0 | 13.0 |
| 68 | 88.0 | 91.5 | 54.0 | 13.7 |
| 70 | 90.0 | 92.0 | 54.0 | 13.0 |
| 75 | 98.0 | 99.0 | 54.0 | 14.0 |
| 80 | 103.0 | 104.0 | 58.0 | 15.0 |
The MINKIX Material Code is comprised of 5 character code such as "BCFZF" which is defined by the following parameters. Check the material code below to specify your requirement on materials. With the detailed code provided, MINKIX promises to speed up offering quotation to you.
Feel free to contact MINKIX's experts. We can offer professional advice with working environment information provided.
Contact MINKIXif you have more than 1 product to inquire, add them to the enquiry list and send in bulk.
