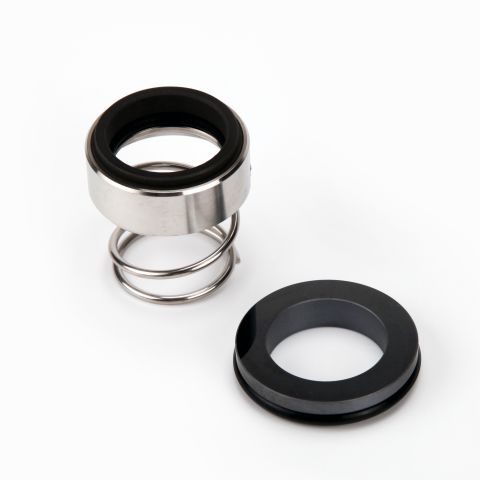

MT32 Burgmann M32

MINKIX Code:
MT32
Equivalent to:

Burgmann M3N/M32/M37
INTRODUCTION OF THIS MECHANICAL SEAL

M3N mechanical seals are immensely popular. Extremely rugged and reliable.

M3N covers a wide spectrum of applications- in water pumps, sewage pumps, submersiable pumps, chemical pumps, etc.

Quality Material
Low Leakage Rate
Fast Quotation
In-stock Supply
Lightening Delivery
Reliable After-Sales

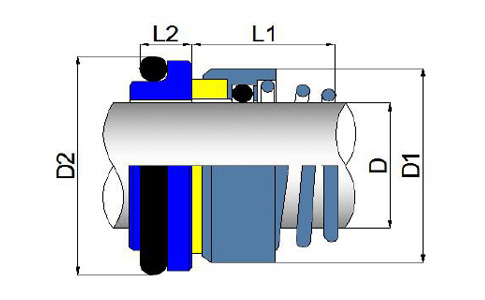

Product Drawing

Product Information

Design Features

Comply with DIN 24960

R/H and L/H spring

M32 is Carbon shrink-fitted in rotary face

M37 is SIC or TC rotary face

Materials available

Seal face: Carbon/SIC, SIC/SIC

Elastomer: Nitrile, Viton, Neoprene, EPDM

Standard seat G4, G9, G6 G13

Operating Conditions

Temperature: -30°C to +260°C

Pressure: Up to 10 bar , 145 psi

Speed: Up to 10m/s, 2000fpm

Depending on medium, size and material

Product Dimensions & Information

Imperial Dimension

D(mm)

L1 （M32）

10	20.0	19.2	16.9	6.6
12	22.0	21.6	17.4	5.6
14	24.0	24.6	17.4	5.6
16	26.0	28.0	17.4	7.5
18	31.0	30.0	20.5	8.0
20	34.0	36.0	22.0	8.0
22	36.0	35.0	23.5	7.5
24	38.0	38.0	25.0	7.5
25	39.0	38.0	26.5	7.5
28	42.0	42.0	26.5	9.0
30	44.0	45.0	26.5	10.5
32	46.0	48.0	28.5	10.5
35	49.0	52.0	28.5	11.0
38	54.0	55.0	32.2	10.3
40	56.0	58.0	34.7	10.8
45	61.0	64.0	39.2	11.6
48	61.0	68.4	44.7	11.6
50	66.0	69.3	45.7	11.6
55	71.0	75.4	49.0	13.3
58	78.0	78.4	55.0	13.3
60	79.0	80.4	55.0	13.3
65	85.0	85.4	54.3	13.0
68	88.0	91.5	56.3	13.7
70	90.0	92.0	56.3	13.0
75	98.0	99.0	56.3	14.0
80	103.0	104.0	59.3	15.0

MINKIX Material Code

The MINKIX Material Code is comprised of 5 character code such as "BCFZF" which is defined by the following parameters. Check the material code below to specify your requirement on materials. With the detailed code provided, MINKIX promises to speed up offering quotation to you.

Rotary Materials
- A – Resin-Car
- B – 99.5% Ceramic
- C – Anti-Car
- Q – Sintered-sic
- S – RB-SIC
- T– YN6 TC
- I – High Nickel Cast Iron
- Z – Bronze
- D – 304 Stainless Steel
- G – 316 Stainless Steel
Stationary Materials
- A – Resin-Car
- B – 99.5% Ceramic
- C – Anti-Car
- Q – Sintered-sic
- S – RB-SIC
- T– YN6 TC
- I – High Nickel Cast Iron
- Z – Bronze
- D – 304 Stainless Steel
- G – 316 Stainless Steel
Secondary Seal Materials
- K – KALREZ
- X – AFLAS
- E – EPDM
- F – PTFE
- M – SILICONE
- N – NITRILE
- P – NEOPRENE
- V – FKM
Spring Materials
- D – 304 Stainless Steel
- G – 316 Stainless Steel
- D2 – 304L Stainless Steel
- G2 – 316L Stainless Steel
- H – Hastelloy
Construction Materials
- D – 304 Stainless Steel
- G – 316 Stainless Steel
- D2 – 304L Stainless Steel
- G2 – 316L Stainless Steel
- H – Hastelloy

Combine
