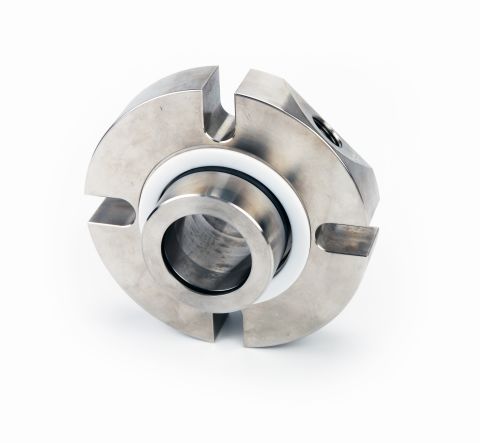

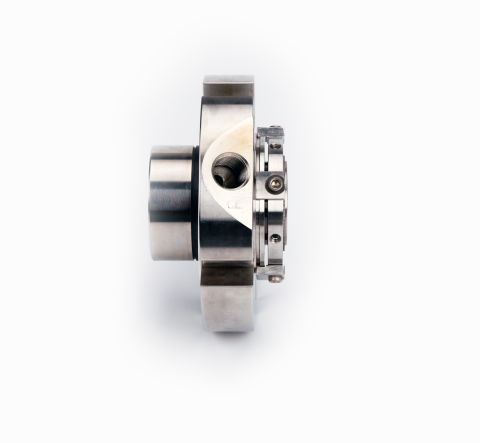

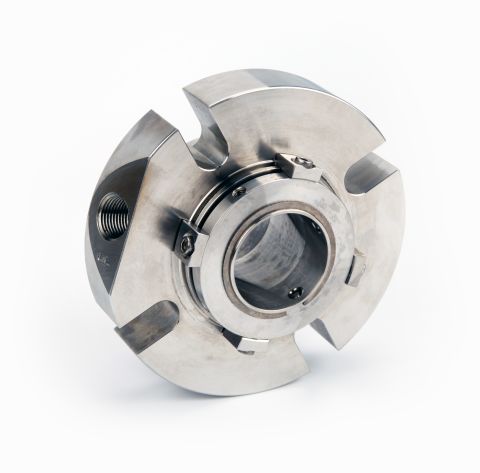

MC01 Cartridge Seals

MINKIX Code:
MC01
Equivalent to:

Burgmann Cartex Single Cartridge Seal
Single Cartridge Seal

Mediums: Chemical, Food, Oil, Petroleum, Paper and Pulp, Sewage Treatment

Pressure: ＜2.8MPa; Speed: ＜35m/s; Temperature: Elastomer Dependent

Material: Carbon, SIC, SSIC, TC; Elastomer: NBR/Viton/EPDM/Aflas/Kalrez

Metal Part and Spring: Stainless Steel/Hast-c

Quality Material
Low Leakage Rate
Fast Quotation
In-stock Supply
Lightening Delivery
Reliable After-Sales

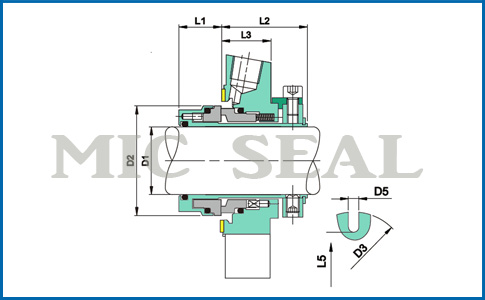

Product Drawing

Product Information

Design Features

Statioanry seal configuration

Flexible mounting of the seal face and seat

Solid seal face and seat

Dual pressure balance

Large auxiliary connection bores

Improved assembly fixure

3/8” NPT Flush/vent port

MC01 is single cartridge seal

MC02 is double cartridge seal

Operation Limits

D1= 22mm~120mm/1”~4.75”

T= —40℃~220℃/-40℉~430℉

P3= up to 25bar/360psi

⊿P= (P3-P1)…25bar

(1.5…2bar, 7bar for buffer media with poor lubrication)

Axial movement max, ±1.0mm, from D1= 75,,(3”)± 1.5mm

Product Dimensions & Information

Imperial Dimension
METRIC DIMENSION

D1(mm)

1.000	1.713	4.094	0.492	0.748	1.496	0.984	2.441
1.125	1.831	4.094	0.492	0.748	1.496	0.984	2.441
1.250	1.988	4.094	0.492	0.748	1.496	0.984	2.638
1.375	2.107	4.331	0.492	0.748	1.496	0.984	2.756
1.500	2.225	4.921	0.579	0.748	1.496	0.984	2.953
1.625	2.382	5.236	0.579	0.748	1.496	0.984	3.150
1.750	2.500	5.512	0.579	0.748	1.496	0.984	3.228
1.875	2.618	5.512	0.579	0.748	1.496	0.984	3.228
2.000	2.697	5.906	0.579	0.748	1.496	0.984	3.425
2.125	2.815	6.102	0.689	0.748	1.496	0.984	3.622
2.250	3.012	6.299	0.689	0.748	1.496	0.984	3.937
2.375	3.091	6.469	0.689	0.748	1.496	0.984	3.937
2.500	3.209	6.693	0.689	0.748	1.496	0.984	4.055
2.625	3.406	7.067	0.689	0.748	1.496	0.984	4.724
2.750	3.484	7.480	0.689	0.748	1.496	0.984	4.724
2.875	3.858	7.480	0.689	0.807	1.634	1.181	4.843
3.000	3.937	7.480	0.689	0.807	1.634	1.181	4.921
3.125	4.134	8.661	0.689	0.807	1.634	1.181	5.118
3.250	4.252	8.661	0.846	0.807	1.634	1.181	5.236
3.375	4.331	8.661	0.846	0.807	1.634	1.181	5.315
3.500	4.528	8.661	0.846	0.807	1.634	1.181	5.512
3.625	4.606	8.661	0.846	0.807	1.634	1.181	5.591
3.750	4.725	8.661	0.846	0.807	1.634	1.181	5.709
3.875	4.921	8.661	0.846	0.807	1.634	1.181	5.906
4.000	4.921	8.661	0.846	0.807	1.634	1.181	5.906

D1(mm)	D2	D3	D5	L1	L2	L3	L5
24	43.5	104	12.5	19	38	25	62
25	43.5	104	12.5	19	38	25	62
28	46.5	104	12.5	19	38	25	62
30	48.5	104	12.5	19	38	25	67
32	50.5	104	12.5	19	38	25	67
33	50.5	104	12.5	19	38	25	67
35	53.5	110	12.5	19	38	25	70
38	56.5	125	14.7	19	38	25	75
40	58.5	125	14.7	19	38	25	75
42	60.5	133	14.7	19	38	25	80
43	61.5	133	14.7	19	38	25	80
45	63.5	140	14.7	19	38	25	82
48	66.5	140	14.7	19	38	25	82
50	68.5	140	14.7	19	38	25	87
53	71.5	150	17.5	19	38	25	92
55	73.5	150	17.5	19	38	25	92
60	78.5	160	17.5	19	38	25	100
65	83.5	165	17.5	19	38	25	105
70	88.5	180	17.5	19	38	25	120
75	100.0	190	17.5	20.5	41.5	30	125
80	105.0	190	17.5	20.5	41.5	30	130
85	110.0	220	21.5	20.5	41.5	30	135
90	115.0	220	21.5	20.5	41.5	30	140
95	120.0	220	21.5	20.5	41.5	30	145
100	125.0	220	21.5	20.5	41.5	30	150

MINKIX Material Code

The MINKIX Material Code is comprised of 5 character code such as "BCFZF" which is defined by the following parameters. Check the material code below to specify your requirement on materials. With the detailed code provided, MINKIX promises to speed up offering quotation to you.

Stationary Materials
- A – Resin-Car
- B – 99.5% Ceramic
- C – Anti-Car
- Q – Sintered-sic
- S – RB-SIC
- T– YN6 TC
- I – High Nickel Cast Iron
- Z – Bronze
- D – 304 Stainless Steel
- G – 316 Stainless Steel
Rotary Materials
- A – Resin-Car
- B – 99.5% Ceramic
- C – Anti-Car
- Q – Sintered-sic
- S – RB-SIC
- T– YN6 TC
- I – High Nickel Cast Iron
- Z – Bronze
- D – 304 Stainless Steel
- G – 316 Stainless Steel
Secondary Seal Materials
- K – KALREZ
- X – AFLAS
- E – EPDM
- F – PTFE
- M – SILICONE
- N – NITRILE
- P – NEOPRENE
- P2 – 四氟填充玻璃纤维
- P3 – 四氟填充炭纤维
- V – FKM
Spring Materials
- D – 304 Stainless Steel
- G – 316 Stainless Steel
- D2 – 304L Stainless Steel
- G2 – 316L Stainless Steel
- H – Hastelloy
Construction Materials
- D – 304 Stainless Steel
- G – 316 Stainless Steel
- D2 – 304L Stainless Steel
- G2 – 316L Stainless Steel

Combine

Send Your Enquiry

Having no Idea About Materials?

Feel free to contact MINKIX's experts. We can offer professional advice with working environment information provided.
