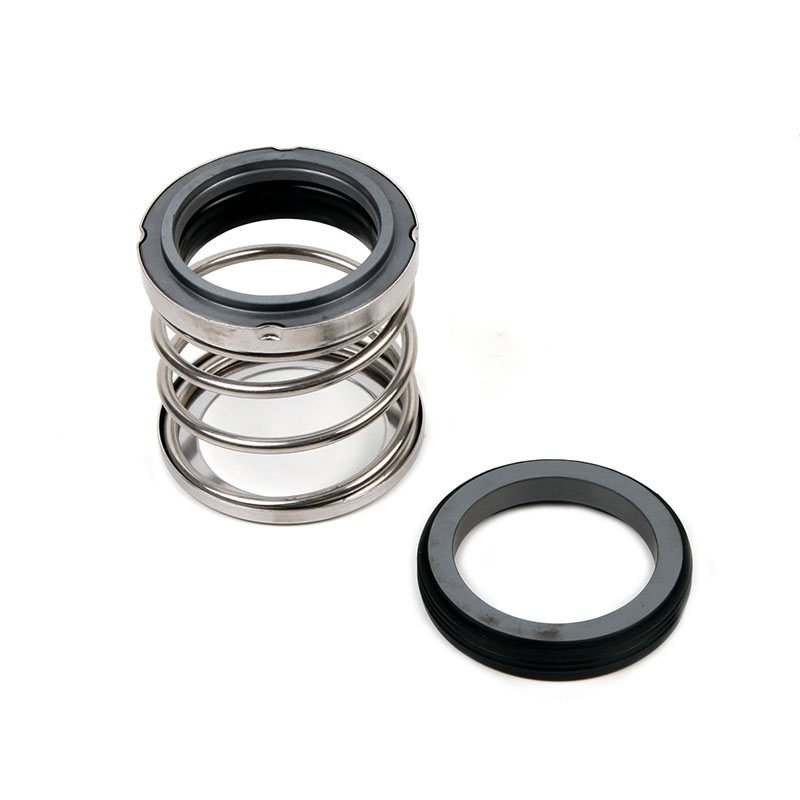

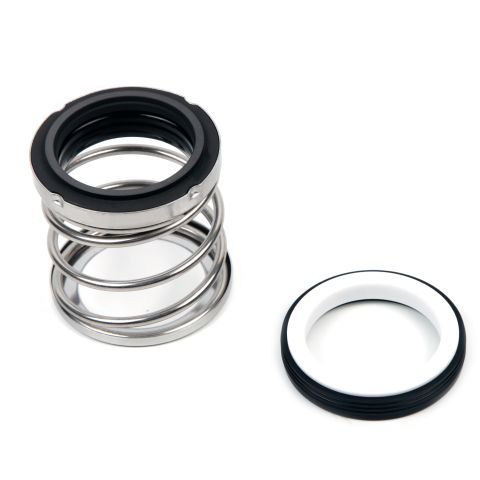

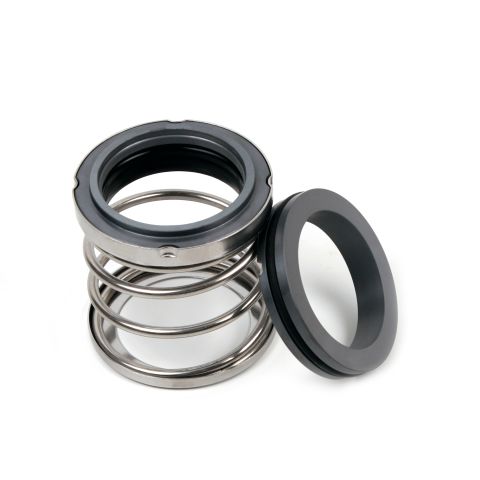

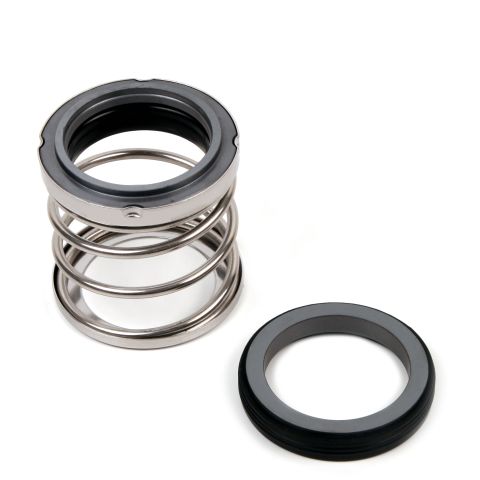

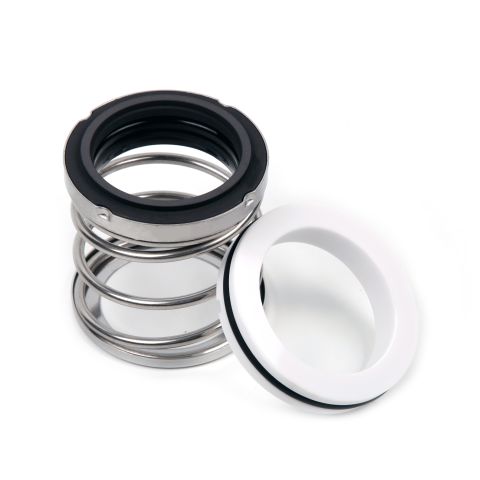

MT21 John Crane Type 21

MINKIX Code:
MT21
Equivalent to:

Johncrane Type 21, AES P04, Burgmann MG921, Sealol 43CU short, Vulcan 11
Introduction to this Mechanical Seal

MT21 standard seal is a general purpose seal, has become an industry standard with OEM Designers.

This versatile seal can be used on a wide range of equipment such as centrifugal, rotary and turbine pumps as well as compressors, mixer, blenders, chillers, agitators, and other rotary shaft equipment.

MT21D is ideal for pupl and paper, pool/spa, water, food processing, wasterwater treatment , and other general applications.

Quality Material
Low Leakage Rate
Fast Quotation
In-stock Supply
Lightening Delivery
Reliable After-Sales

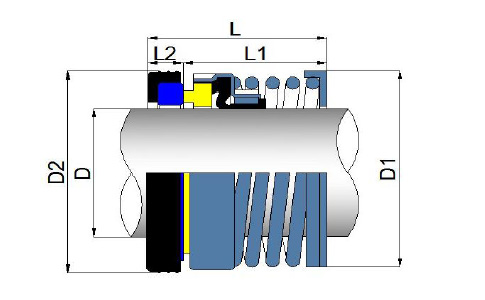

Product Drawing

Product Information

Design Features

Self- aligning, automatically adjusts for shaft end pay and run-out

Mechanical drive protexts the rubber bellows

Single coil spring improves tolerance to clogging

Simple to fit and repairable in field

Can be used with practically any type of mating ring

Materials available

Seal face: carbon, ceramic, TC, SIC

Elastomer: nitrile, viton.

Standard seat

Cup mounted seat

Operating Conditions

Temperature: -40°C to +205°C

Pressure: Up to 11 bar , 150 psi

Speed: Up to 13m/s, 2500fpm

Depending on medium, size and material

Product Dimensions & Information

Imperial Dimension

D (IN)

0.375	22.2	21.5	22.2	6.3	28.5
0.500	25.4	23.0	22.2	8.0	30.2
0.625	31.8	26.5	22.2	10.3	32.5
0.750	35.0	30.5	22.2	10.3	32.5
0.875	38.1	34.5	24.0	10.3	34.3
1.000	41.3	40.0	25.4	11.0	36.4
1.125	44.5	44.5	27.0	11.0	38.0
1.250	47.7	47.0	27.0	11.0	38.0
1.375	50.8	51.5	28.5	11.0	39.5
1.500	54.0	55.0	28.5	11.0	39.5
1.625	60.3	58.0	35.0	12.7	47.7
1.750	63.5	61.5	35.0	12.7	47.7
1.875	66.7	65.5	38.0	12.7	50.7
2.000	69.9	70.0	38.0	12.7	50.7
2.125	76.2	75.0	43.0	14.3	57.3
2.250	79.4	79.0	43.0	14.3	57.3
2.375	82.6	82.0	46.0	14.3	60.3
2.500	85.7	86.0	46.0	14.3	60.3
2.625	85.7	91.5	49.0	16.0	65.0
2.750	88.9	93.0	49.0	16.0	65.0
2.875	95.3	99.0	52.5	16.0	68.5
3.000	98.4	99.0	52.5	16.0	68.5

MINKIX Material Code

The MINKIX Material Code is comprised of 5 character code such as "BCFZF" which is defined by the following parameters. Check the material code below to specify your requirement on materials. With the detailed code provided, MINKIX promises to speed up offering quotation to you.

Rotary Materials
- A – Resin-Car
- B – 99.5% Ceramic
- C – Anti-Car
- Q – Sintered-sic
- S – RB-SIC
- T– YN6 TC
- I – High Nickel Cast Iron
- Z – Bronze
- D – 304 Stainless Steel
- G – 316 Stainless Steel
Stationary Materials
- A – Resin-Car
- B – 99.5% Ceramic
- C – Anti-Car
- Q – Sintered-sic
- S – RB-SIC
- T– YN6 TC
- I – High Nickel Cast Iron
- Z – Bronze
- D – 304 Stainless Steel
- G – 316 Stainless Steel
Secondary Seal Materials
- K – KALREZ
- X – AFLAS
- E – EPDM
- F – PTFE
- M – SILICONE
- N – NITRILE
- P – NEOPRENE
- V – FKM
Spring Materials
- D – 304 Stainless Steel
- G – 316 Stainless Steel
- D2 – 304L Stainless Steel
- G2 – 316L Stainless Steel
- H – Hastelloy
Construction Materials
- D – 304 Stainless Steel
- G – 316 Stainless Steel
- D2 – 304L Stainless Steel
- G2 – 316L Stainless Steel
- H – Hastelloy

Combine
