MR3 Roten Type 3

MINKIX Code:
MR3
Equivalent to:

Roten Type 3, Simplex Non-DIN, AES T04
INTRODUCTION OF THIS MECHANICAL SEAL

MR3 is a particularly economic mechanical sel, highly valuable and with interchangeable components

MR3 is used in a vast field of application with low maintenance costs

MR3 offers shaft diameters from 10-40mm for common water pump manufacturers

MR3 is common found in pumps such as lowara, and lots of water pumps.

Quality Material
Low Leakage Rate
Fast Quotation
In-stock Supply
Lightening Delivery
Reliable After-Sales

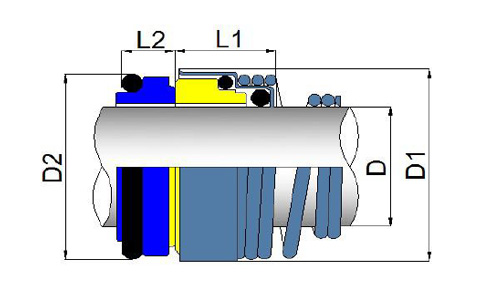

Product Drawing

Product Information

Design Features

Metric size shafts, seat comply with FE housing

Conical spring dependent on direction of rotation

Unbalanced seals

MR3 is ceramic rotary and carbon seat as standard

Materials available

Seal face: Ceramic, Carbon, SIC

Elastomer: Nitrile, Viton, EPDM

Operating Conditions

Temperature: -30°C to +200°C

Pressure: Up to 10 bar , 145 psi

Speed: Up to 10m/s, 2000fpm

Depending on medium, size and material

Product Dimensions & Information

Imperial Dimension

D(mm)

Total W.L

10	20.0	18.1	15.0	5.5	20.5
12	22.0	20.6	18.0	5.5	23.5
14	25.0	23.1	22.0	6.0	28.0
15	29.0	26.9	22.0	7.0	29.0
16	29.0	26.9	23.0	7.0	30.0
17	29.0	26.9	23.0	7.0	30.0
18	33.0	30.9	24.0	8.0	32.0
19	33.0	30.9	25.0	8.0	33.0
20	33.0	30.9	25.0	8.0	33.0
21	38.0	35.4	25.0	8.0	33.0
22	38.0	35.4	25.0	8.0	33.0
23	38.0	35.4	27.0	8.0	35.0
24	38.0	35.4	27.0	8.0	35.0
25	40.0	38.2	27.0	8.5	35.5
28	46.0	43.3	29.0	9.0	38.0
29	46.0	43.3	30.0	9.0	39.0
30	46.0	43.3	30.0	9.0	39.0
32	46.0	43.3	30.0	9.0	39.0
33	48.0	53.5	39.0	11.5	50.5
35	50.0	53.5	39.0	11.5	50.5
38	56.0	60.5	39.0	11.5	50.5
40	58.0	60.5	39.0	11.5	50.5

MINKIX Material Code

The MINKIX Material Code is comprised of 5 character code such as "BCFZF" which is defined by the following parameters. Check the material code below to specify your requirement on materials. With the detailed code provided, MINKIX promises to speed up offering quotation to you.

Rotary Materials
- A – Resin-Car
- B – 99.5% Ceramic
- C – Anti-Car
- Q – Sintered-sic
- S – RB-SIC
- T– YN6 TC
- I – High Nickel Cast Iron
- Z – Bronze
- D – 304 Stainless Steel
- G – 316 Stainless Steel
Stationary Materials
- A – Resin-Car
- B – 99.5% Ceramic
- C – Anti-Car
- Q – Sintered-sic
- S – RB-SIC
- T– YN6 TC
- I – High Nickel Cast Iron
- Z – Bronze
- D – 304 Stainless Steel
- G – 316 Stainless Steel
Secondary Seal Materials
- K – KALREZ
- X – AFLAS
- E – EPDM
- F – PTFE
- M – SILICONE
- N – NITRILE
- P – NEOPRENE
- V – FKM
Spring Materials
- D – 304 Stainless Steel
- G – 316 Stainless Steel
- D2 – 304L Stainless Steel
- G2 – 316L Stainless Steel
- H – Hastelloy
Construction Materials
- D – 304 Stainless Steel
- G – 316 Stainless Steel
- D2 – 304L Stainless Steel
- G2 – 316L Stainless Steel
- H – Hastelloy

Combine
